Product Description

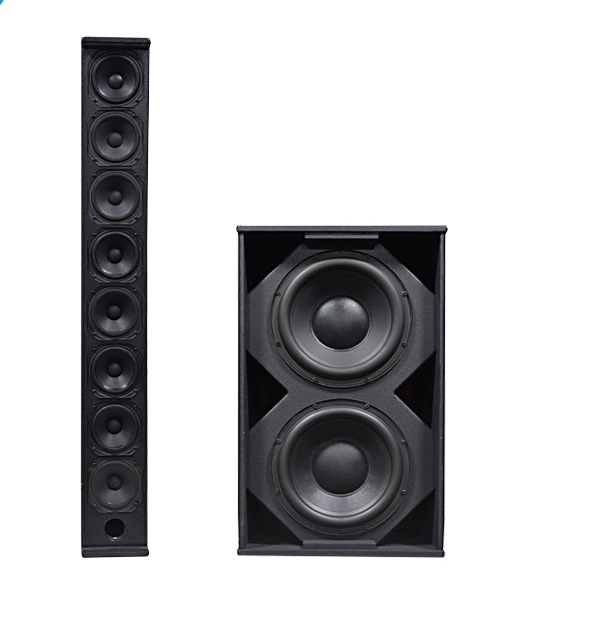

L6 8x4 inch full range column loudspeaker and 12 inch active
subwoofer
Application:
- Meeting room, Hass, Ballroom
- Concert, Hall, Church
- Small and medium touring sound requirements
- Supplementary sound reinforcement system
Features :
1. Meet the high requirements of language sound reinforcement places
2. 8x4 inch full-frequency speakers and vertical array design, make
sound pure and full, improve the sound transmission gain of entire
sound reinforcement system, and ensure the uniformity of the sound
field.
3. High-power, high sensitivity, small size full frequency speaker
units to give hifi exquisite performance.
4. Work with L212BA active dual 12 inch subwoofer loudspeaker to form
a compact modular active "multiple in one" sound reinforcement
system.
5. Easy and fast installation, do not need speaker cable and frame .
------------------------------------------------------------------------------------------------------1. L212BA with 3 channel active Power Amplifier Module(1200W/8Ωx 1,400W/8Ωx2),and DSP(2 input 4 output)Digital audio processing function.
2. L212BA with connector on the top to match the L6 and L8 speaker,
make stacked and 2-way sound system
Specification :
Parameter |
Model No. | L8 |
Frequency Response | 150Hz -18kHz(-10dB) |
Sensitivity ( 1W/1m ) | 96dB |
Nominal Impedance (Ω) | 12Ω |
Rated Power(W) | 480W (AES) |
Speaker Unit | 8×4 inch full range speaker unit(25mm/1inch voice coil diameter) |
Nominal Coverage(HxV) | 70°×10° |
Max SPL(SPL) | 123dB(Continue), 129dB(Peak) |
Suspension Hardware | 10xM8 Fittings |
Connectors | 2xNL4MP,1+1- |
Finishing Painting | Black water-based painting |
Dimension (W×D×H) | 127×152×958(mm) |
Net Weight | 13 (kg) |
Parameter |
Model No. | L212BA |
Frequency response: | 50Hz-250Hz(±3dB)/42Hz-300Hz(-10 dB) |
Sensitivity ( 1W/1m ) : | 99dB |
Nominal impedance: | 8Ω |
Rated Power: | 600W |
Speaker unit: | 15 inch subwoofer (100mm/4inch voice coil diameter) |
Max SPL(Continue/Peak) | 126dB/132dB |
Power Amplifier Module: | 1000W/8Ωx 1,400W/8Ωx2 |
DSP: | Digital audio processing function |
Power Supply: | AC110-250V |
SNR: | ≥ 98db |
THD | < 0.2% |
Connector: | 2xNL4MP 1+1- |
Dimension (W×D×H) : | 505×445×730(mm) |
Net weight: | 35kg |

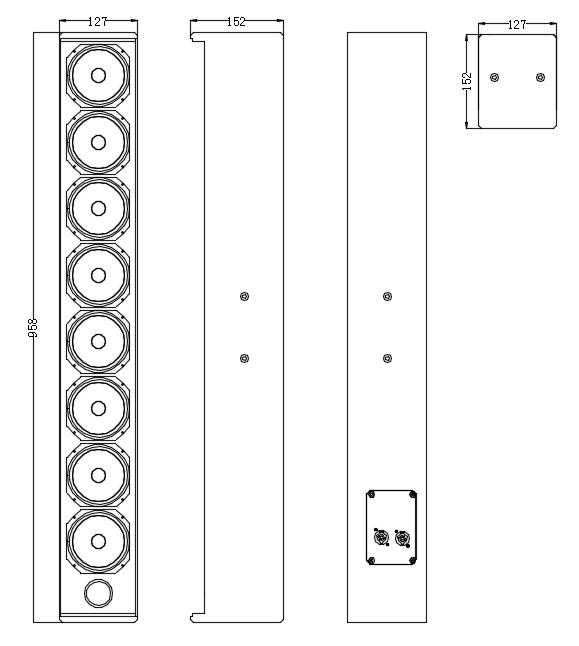

Dimension :
Full range speaker L8
12 inch Subwooofer L212BA
