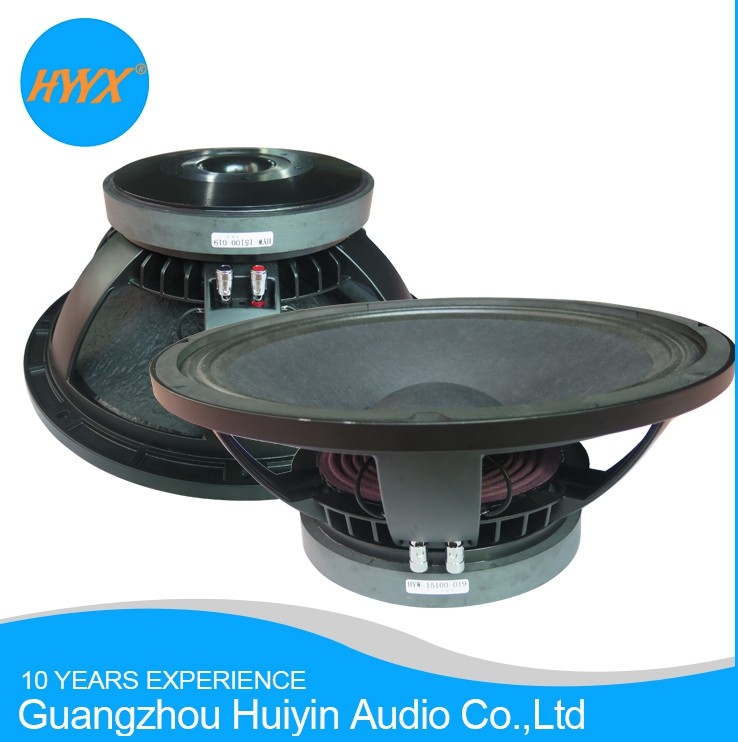

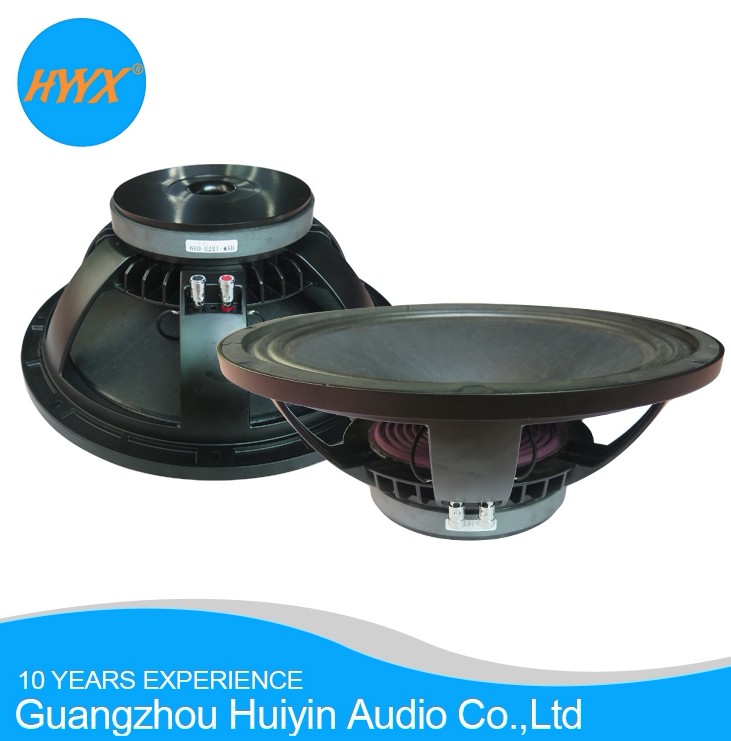

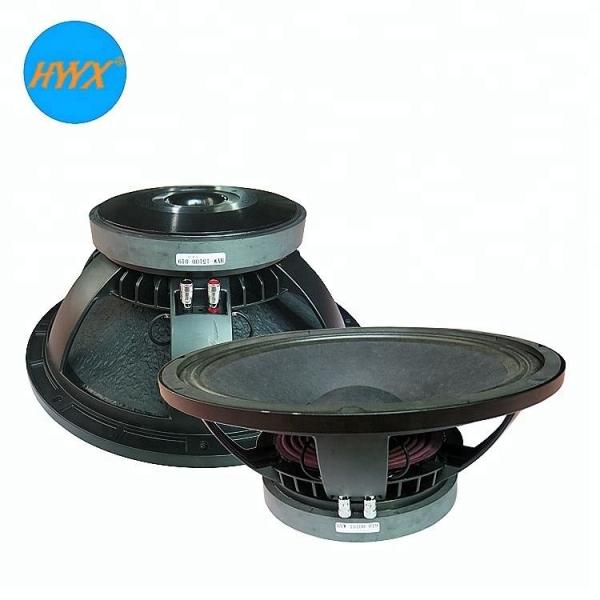

    4inch Voice Coil 15'' 500W RMS 2KHz Car Woofer Speaker

    Ask Lasest Price
    Brand Name : HYYX
    Model Number : HYW-15100-019
    Supply Ability : 10000 Piece/Pieces per Week
    Price : $35.00 - $50.00 / Piece
    • Product Details
    • Company Profile

    4inch Voice Coil 15'' 500W RMS 2KHz Car Woofer Speaker

    500W RMS 15 Inch Car Woofer Speaker

    Product Description


    Features :


    - 15 inch woofer speakers with low price, higher quality
    - 1200W continuous program power capacity , 600W rms power handling
    - 98dB sensitivity 1w/1m
    - 30hz-2khz Frequency response
    - 4" Copper Voice coil
    - Low cost but ideal for 2-way or 3-way speakers system
    Specification
    Nominal diameter
    360/15
    mm/inch
    Nominal impedance
    8
    ohm
    Min impedance LF
    5.2
    ohm
    Min impedance HF
    6
    ohm
    Frequency response
    30-2k
    Hz
    Magnet size
    220x25
    mm
    Magnet material
    Ferrite
    Sensitivity (1w/1m)
    98
    dB
    Nominal power handling
    500
    Watts
    Continuous power handling
    1000
    Watts
    Voice coil diameter
    100/4 "
    mm/ inch
    Winding material
    Copper
    Cone material
    Paper
    Surround material
    Cloth
    T/S Parameter
    Fs
    42.6
    Hz
    Re
    5.2
    Ω
    Qes
    0.48
    Qts
    0.47
    Qms
    15.52
    Vas
    106.4
    L
    Rms
    2.5
    kg/s
    Cms
    0.09
    mm/N
    Mms
    147.7
    gr
    BI
    21.8
    N/A
    Rp
    135.2
    Ω
    Lp
    41.5
    mH
    Cp
    660.3
    uF
    Le
    1.4
    mH
    Xmax (one-way)
    12
    mm
    Mounting information
    Overall diameter
    393/15.5
    mm/inch
    Bolt Circle diameter
    375/14.77
    mm/inch
    Baffle Cutout diameter
    355/13.98
    mm/inch
    Total Depth
    165/6.5
    mm/inch
    Flange thickness
    14/0.56
    mm/inch
    Shipping information
    Net weight
    10.18
    KG
    Shipping weight
    11
    KG
    Shipping box
    410x410x200
    mm

    4inch Voice Coil 15'' 500W RMS 2KHz Car Woofer Speaker

    4inch Voice Coil 15'' 500W RMS 2KHz Car Woofer Speaker
