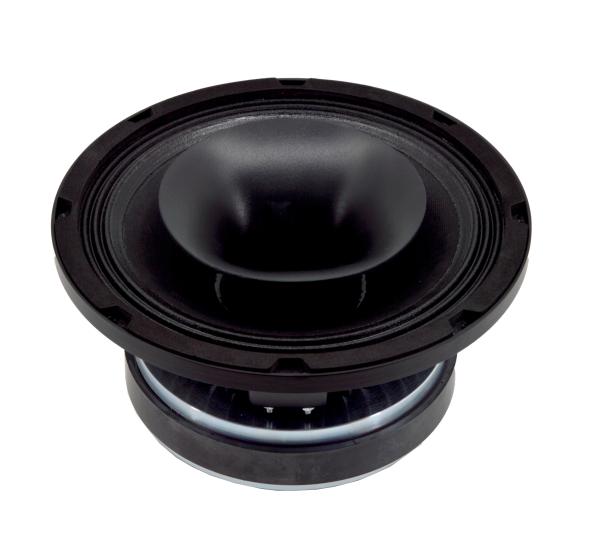

    75mm Voice Coil 10 Inches 97dB Coaxial Speakers With Good Bass

    Ask Lasest Price
    Brand Name : OEM
    Model Number : HYW-1075-030
    Supply Ability : 50000 Piece/Pieces per Month
    Price : $40.00 - $60.00 / Piece
    • Product Details
    • Company Profile

    75mm Voice Coil 10 Inches 97dB Coaxial Speakers With Good Bass

    10 inch pa Coaxial speaker professional audio coaxial speaker high sensitivity

    Product Description

    Features:

    • 10“ Coaxial speaker with big horn for high sensitivity design
    • 350Wrms power handling, 700W max power
    • 55hz- 20kHz frequency response
    • 97dB sensitivity
    • Single ferrite magnet assembly
    • Inside/Outside copper voice coil
    Specification
    Nominal diameter
    260/10
    mm/inch
    Nominal impedance
    8
    ohm
    Min impedance LF
    5.2
    ohm
    Min impedance HF
    6
    ohm
    Frequency response
    55-20k
    Hz
    RMS Power
    350
    Magnet material
    Ferrite
    Specification LF
    Sensitivity (1w/1m)
    97
    dB
    Nominal power handling
    350
    Watts
    Continuous power handling
    700
    Watts
    Voice coil diameter
    75/3
    mm/ inch
    Winding material
    Copper
    Cone material
    Paper
    Surround material
    Cloth
    Specification HF
    Sensitivity (1w/1m)
    110
    dB
    Nominal power handling
    100
    Watts
    Continuous power handling
    200
    Watts
    Voice coil diameter
    75/3
    mm/inch
    Diaphragm
    Titanium
    T/S Parameter
    Fs
    64
    Hz
    Re
    5.2
    Qes
    0.33
    Qts
    0.30
    Qms
    5.35
    Vas
    37.9
    L
    Rms
    2.28
    kg/s
    Cms
    0.21
    mm/N
    Mms
    32.5
    gr
    BL
    13.94
    N/A
    Mounting information
    Overall diameter
    261/10.3
    mm/inch
    Bolt Circle diameter
    245/9.6
    mm/inch
    Baffle Cutout diameter
    234/9.2
    mm/inch
    Total Depth
    125/4.9
    mm/inch
    Shipping information
    Net weight
    8.5
    KG
    Shipping weight
    9.0
    KG
    Shipping box
    280x280x130
    mm

    75mm Voice Coil 10 Inches 97dB Coaxial Speakers With Good Bass75mm Voice Coil 10 Inches 97dB Coaxial Speakers With Good Bass
