    Single Magnet 8ohm 450W RMS 98dB Coaxial Car Speakers

    Ask Lasest Price
    Brand Name : OEM
    Model Number : HYW-1275-106
    Supply Ability : 50000 Piece/Pieces per Month
    Price : $40.00 - $60.00 / Piece
    • Product Details
    • Company Profile

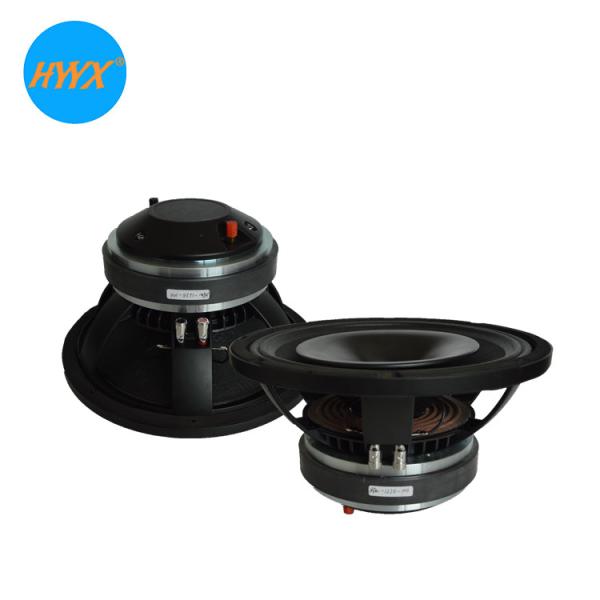

    Single Magnet 8ohm 450W RMS 98dB Coaxial Car Speakers


    Product Description

    12 inch pa Coaxial speaker professional audio coaxial speaker high sensitivity

    Features:

    • 12“ Coaxial speaker with big horn for high sensitivity design
    • 450Wrms power handling, 9000W max power
    • 41hz- 20kHz frequency response
    • 98dB sensitivity
    • Single ferrite magnet assembly
    • Inside/Outside copper voice coil
    Specification
    Nominal diameter
    300/12
    mm/inch
    Nominal impedance
    8
    ohm
    Min impedance LF
    5.2
    ohm
    Min impedance HF
    6
    ohm
    Frequency response
    40-20k
    Hz
    RMS Power
    450
    Magnet material
    Ferrite
    Specification LF
    Sensitivity (1w/1m)
    98
    dB
    Nominal power handling
    450
    Watts
    Continuous power handling
    900
    Watts
    Voice coil diameter
    75/3
    mm/ inch
    Winding material
    Copper
    Cone material
    Paper
    Surround material
    Cloth
    Specification HF
    Sensitivity (1w/1m)
    110
    dB
    Nominal power handling
    100
    Watts
    Continuous power handling
    200
    Watts
    Voice coil diameter
    75/3
    mm/inch
    Diaphragm
    Titanium
    T/S Parameter
    Fs
    48
    Hz
    Re
    5.2
    Qes
    0.3530
    Qts
    0.33
    Qms
    6.4
    Vas
    104.88
    L
    Rms
    2.0
    kg/s
    Cms
    0.25
    mm/N
    Mms
    42.44
    gr
    BL
    13.79
    N/A
    Mounting information
    Overall diameter
    321/12.6
    mm/inch
    Bolt Circle diameter
    294/11.57
    mm/inch
    Baffle Cutout diameter
    285/11.22
    mm/inch
    Total Depth
    180/7
    mm/inch
    Shipping information
    Net weight
    8.8
    KG
    Shipping weight
    9.5
    KG
    Shipping box
    320x320x200
    mm

    Single Magnet 8ohm 450W RMS 98dB Coaxial Car SpeakersSingle Magnet 8ohm 450W RMS 98dB Coaxial Car Speakers
