    15'' Neodymium Coaxial PA Speaker

    15 inch neodymium coaxials professional speaker carbon cone Coaxial speaker

    Product Description

    Features:

    • 15 inch Coaxial speaker with neodymium magnet
    • 500Wrms power handling , 1000W max power
    • Carbon cone for high performance

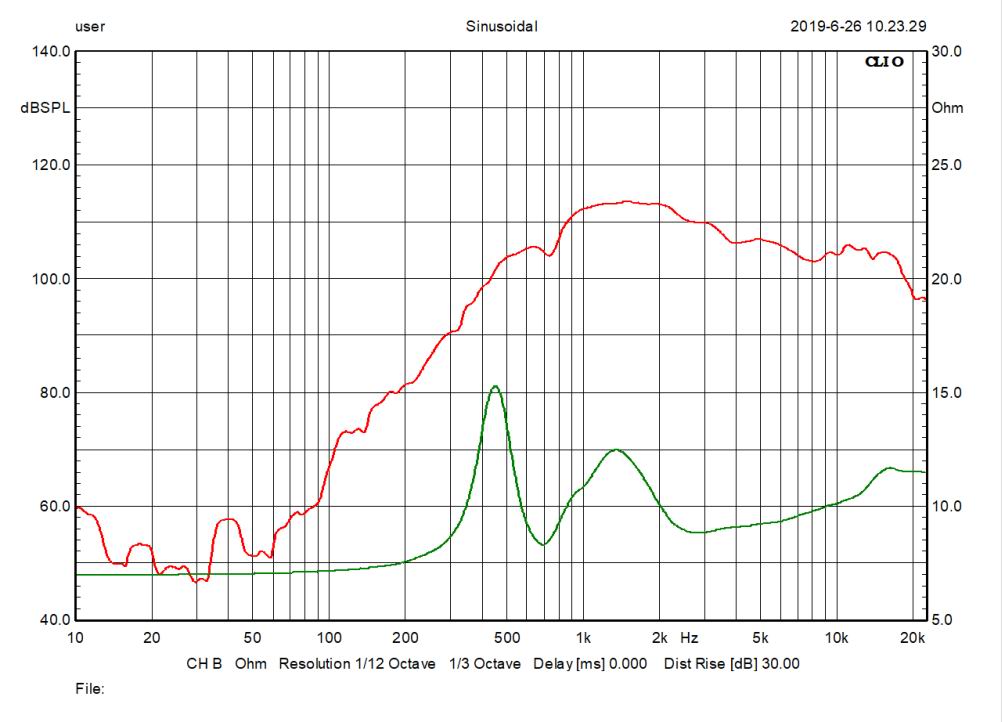

    • 44hz- 20kHz frequency response
    • 100dB sensitivity
    • Inside/Outside copper voice coil

    Specification
    Nominal diameter
    380/15
    mm/inch
    Nominal impedance
    8
    ohm
    Min impedance LF
    5.2
    ohm
    Min impedance HF
    6
    ohm
    Frequency response
    44hz-20khz
    Hz
    RMS Power
    500
    Magnet material
    Neodymium
    Specification LF
    Sensitivity (1w/1m)
    100
    dB
    Nominal power handling
    500
    Watts
    Continuous power handling
    1000
    Watts
    Voice coil diameter
    75/3
    mm/ inch
    Winding material
    Copper
    Cone material
    Carbon
    Surround material
    Cloth
    Specification HF
    Sensitivity (1w/1m)
    112
    dB
    Nominal power handling
    100
    Watts
    Continuous power handling
    200
    Watts
    Voice coil diameter
    75/3
    mm/inch
    Diaphragm
    Titanium
    T/S Parameter
    Fs
    44.2
    Hz
    Re
    5.2
    Qes
    0.7258
    Qts
    0.6449
    Qms
    5.7878
    Vas
    142.3946
    L
    Rms
    4.7353
    kg/s
    Cms
    0.1313
    mm/N
    Mms
    98.59
    gr
    Sd
    0.0881
    Mounting information
    Overall diameter
    388/15.3
    mm/inch
    Bolt Circle diameter
    371/14.6
    mm/inch
    Baffle Cutout diameter
    358/14
    mm/inch
    Total Depth
    195/7.7
    mm/inch
    Shipping information
    Net weight
    6
    KG
    Shipping weight
    7
    KG
    Shipping box
    420x420x220
    mm
