    20khz 15 Inch 120mm Single Neodymium Magnet Speaker

    Ask Lasest Price
    Brand Name : OEM
    Model Number : HYW-1575-026
    Supply Ability : 50000 Piece/Pieces per Month
    Price : $100.00 - $150.00 / Piece
    • Product Details
    • Company Profile

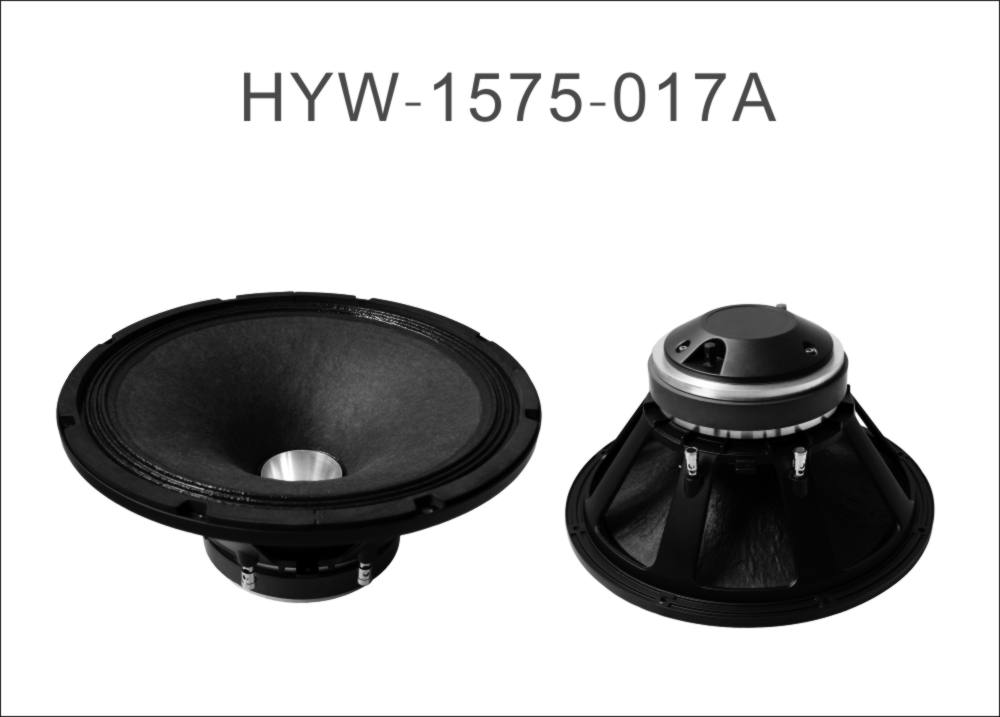

    20khz 15 Inch 120mm Single Neodymium Magnet Speaker

    15 inch Coaxial speaker neo speaker

    Product Description

    Features:

    • 15“ Coaxial speaker with neodymium magnet copy speakers
    • 450Wrms power handling , 900W max power
    • 41hz- 20kHz frequency response
    • 98dB sensitivity
    • Single Neodymium magnet assembly
    • Inside/Outside copper voice coil
    Specification
    Nominal diameter
    380/15
    mm/inch
    Nominal impedance
    8
    ohm
    Min impedance LF
    5.2
    ohm
    Min impedance HF
    6
    ohm
    Frequency response
    40-20k
    Hz
    RMS Power
    450
    Magnet material
    Neodymium
    Specification LF
    Sensitivity (1w/1m)
    98
    dB
    Nominal power handling
    450
    Watts
    Continuous power handling
    900
    Watts
    Voice coil diameter
    75/3
    mm/ inch
    Winding material
    Copper
    Cone material
    Paper
    Surround material
    Cloth
    Specification HF
    Sensitivity (1w/1m)
    112
    dB
    Nominal power handling
    100
    Watts
    Continuous power handling
    200
    Watts
    Voice coil diameter
    75/3
    mm/inch
    Diaphragm
    Titanium
    T/S Parameter
    Fs
    39.9
    Hz
    Re
    5.2
    Qes
    0.59
    Qts
    0.53
    Qms
    6.02
    Vas
    163.7
    L
    Rms
    4.6
    kg/s
    Cms
    0.15
    mm/N
    Mms
    109.4
    gr
    BI
    18.3
    N/A
    Rp
    61.4
    Lp
    39.6
    mH
    Cp
    803
    uF
    Le
    0.8
    mH
    Xmax(one-way)
    12
    mm
    Mounting information
    Overall diameter
    394/15.5
    mm/inch
    Bolt Circle diameter
    375/14.76
    mm/inch
    Baffle Cutout diameter
    355/14
    mm/inch
    Total Depth
    193/7.6
    mm/inch
    Flange thickness
    14/0.55
    mm/inch
    Shipping information
    Net weight
    6
    KG
    Shipping weight
    7
    KG
    Shipping box
    420x420x220
    mm
