Product Description
Specification
Features :

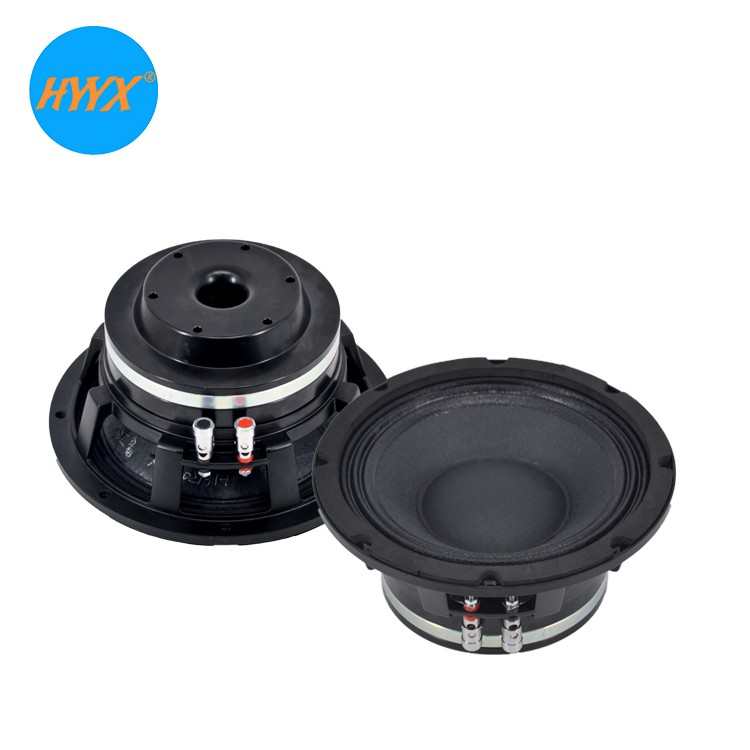

- 8 inch woofer speaker
- 350WRMS, 700WMax power
- 98dB sensitivity 1W/1M
- 70hz-4.5khz Frequency response
- 2.5 inch voice coil CCAW wire
Speccification :
Specification | | |
Nominal diameter | 200/8 | mm/inch |
Nominal impedance | 8 | ohm |
Min impedance | 5.6 | ohm |
Frequency response | 70-4.5k | Hz |
Magnet material | Ferrite | |
Sensitivity (1w/1m) | 98 | dB |
RMS power handling | 350 | Watts |
Continuous power handling | 700 | Watts |
Voice coil diameter | 65/2.5 | mm/ inch |
Winding material | CCAW | |
Cone material | Paper | |
Surround material | Cloth | |
T/S Parameter | | |
Fs | 71 | Hz |
Re | 5.8 | Ω |
Qes | 0.45 | |
Qts | 0.42 | |
Qms | 5.77 | |
Vas | 13.6 | L |
Rms | 1.7 | kg/s |
Cms | 0.22 | mm/N |
Mms | 22.3 | gr |
BL | 11.3 | N/A |
Mounting information | | |
Overall diameter | 225/8.8 | mm/inch |
Bolt Circle diameter | 208/8.2 | mm/inch |
Baffle Cutout diameter | 186/7.3 | mm/inch |
Depth | 100/3.9 | mm/inch |
Shipping information | | |
Net weight | 3.6 | KG |
Shipping weight | 4.2 | KG |
Shipping box | 220x220x110 | mm |
